Vehicle Securing Position

When transporting the vehicle by flat bed tow truck or trailer, secure the vehicle to the trailer using the holes and left tiedown loop shown in the figure.

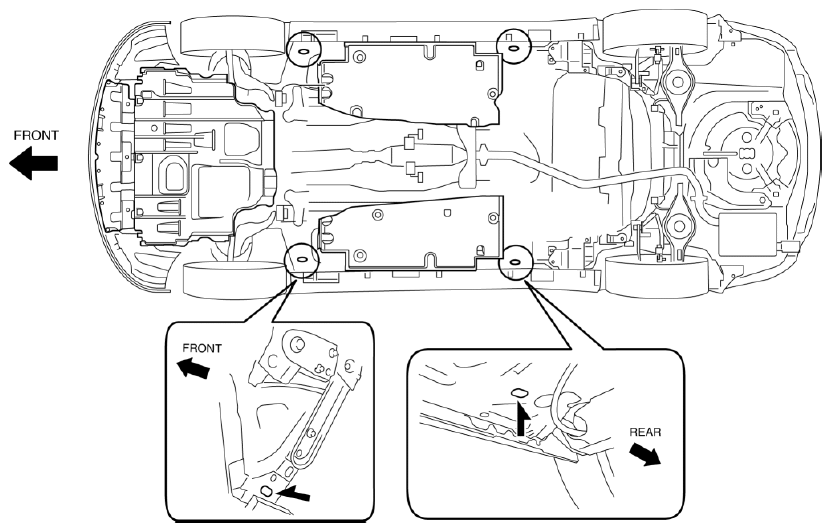

Fig 1: Identifying Holes And Left Tiedown Loop

Courtesy of MAZDA MOTORS CORP.

CAUTION:

To prevent damage to the vehicle, do not use the tiedown eyelet (front) and the left/right tiedown loops (rear) for towing the vehicle using another vehicle.
Do not use the tie-down eyelet and rear hook for tying down the vehicle onto a trailer and flatbed tow truck. It may cause damage to the vehicle.

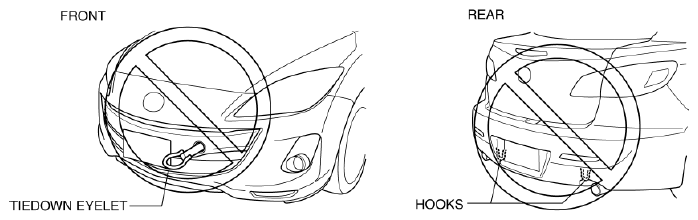

Fig 2: Caution - Do Not Use Tie-Down Eyelet And Rear Hook For Tying Down Vehicle Onto Trailer And Flatbed Tow Truck

Courtesy of MAZDA MOTORS CORP.

NOTE:

The tiedown eyelet (front) and the tiedown loops (rear) are used only when the vehicle is transported by ship.
