Short-code inspection

WARNING: This page is about a different car, the 2012 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
  2. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the power outer mirror connector. (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
  4. Verify that the continuity between side turn light terminals is as indicated in the table.

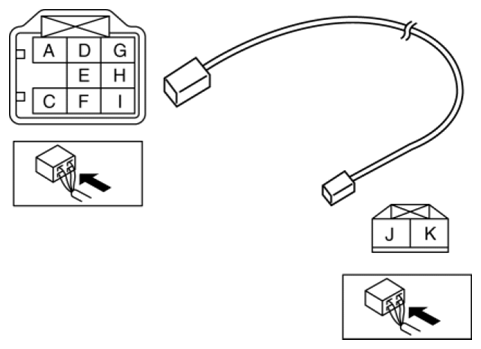

    Fig 1: Identifying Side Turn Light Connector Terminals
    G08159206
  5. If not as indicated in the table, replace the power outer mirror.

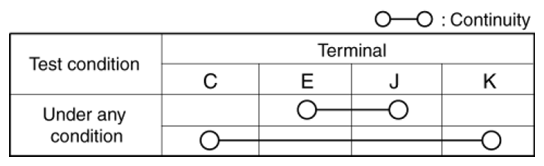

    Fig 2: Side Turn Light Connector Terminal Continuity Chart
    G08159207
