Map Light Bulb Removal/Installation
WARNING: This page is about a different car, the 2012 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)

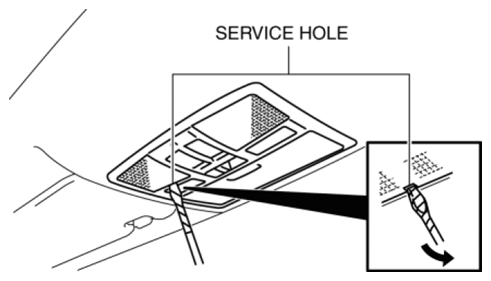

- Insert a tape-wrapped fastener remover into the service hole and pry with the screwdriver in the direction shown by the arrow to remove the lens.

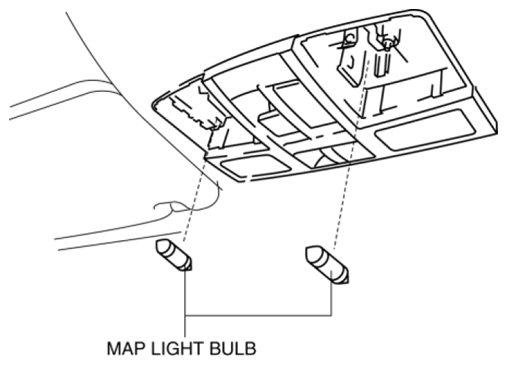

- Remove the map light bulb.
- Install in the reverse order of removal.
