Headlight Leveling Switch Removal/Installation

WARNING: This page is about a different car, the 2012 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  2. Remove the switch panel in the direction of the arrow shown in the figure.

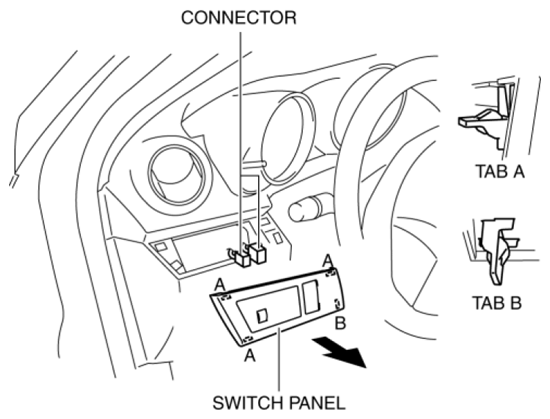

    Fig 1: Switch Panel And Connectors
    G08159278
  3. Disconnect the connector.
  4. Remove the headlight leveling switch in the direction of the arrow (2) shown in the figure while pressing the tabs in the direction of the arrow (1).

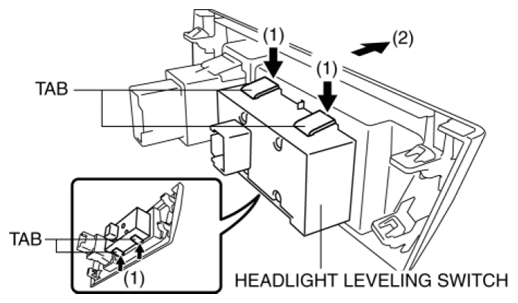

    Fig 2: Headlight Leveling Switch
    G08159279
  5. Remove the headlight leveling switch.
  6. Install in the reverse order of removal.
