Using M-MDS

WARNING: This page is about a different car, the 2012 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the M-MDS to the DLC-2.

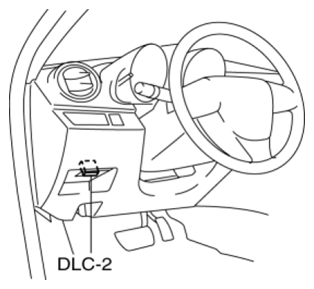

    Fig 1: Identifying DLC-2
    G08159255
  2. After the vehicle is identified, select the following items from the initial screen of the M-MDS.
    • When using the IDS (laptop PC)
      1. Select "Electrical".
      2. Select "Exterior Lighting".
      3. Select "Headlamp".
      4. Select "Auto Leveling Sensor Re-zero Procedure"
  3. Adjust the headlight aiming. (See HEADLIGHT AIMING .)
