Front Combination Light Removal/Installation

WARNING: This page is about a different car, the 2012 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Incorrect servicing of the discharge headlights could result in electrical shock. Before servicing the discharge headlights, always refer to the discharge headlight service warnings. (See DISCHARGE HEADLIGHT SERVICE WARNINGS .)
  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .)(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

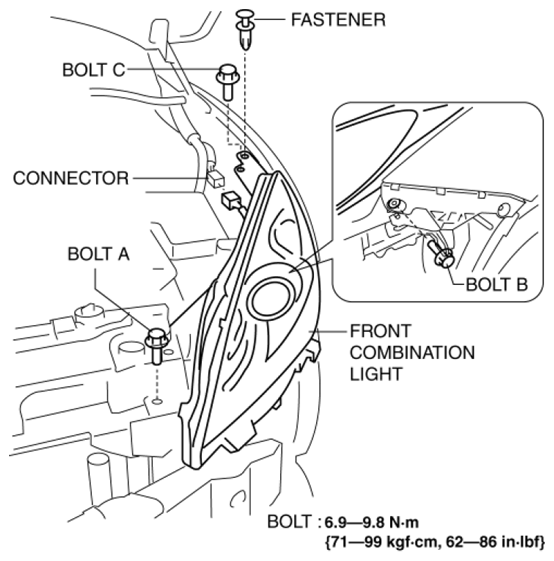

    Fig 1: Front Combination Light, Connector And Bolts With Torque Specification
    G08159135
  4. Remove the bolt A.
  5. Remove the bolt B.
  6. Remove the bolt C.
  7. Remove the fastener.
  8. Pull the front combination light in the direction of the arrow shown in the figure and remove the pin from the body.

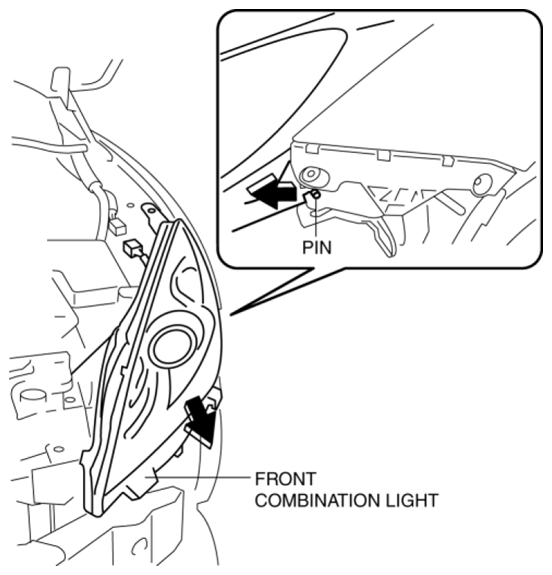

    Fig 2: Pulling Front Combination Light And Pin
    G08159136
  9. Remove the front combination light.
  10. Remove the bolts D.

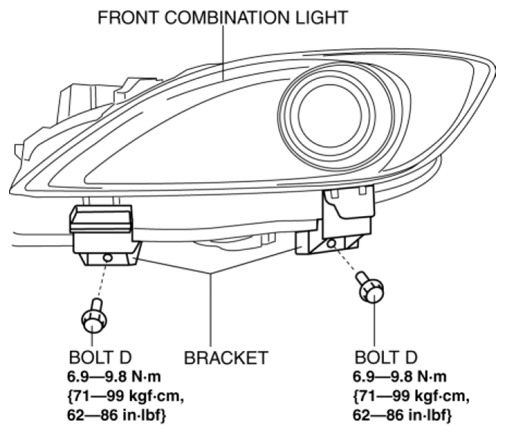

    Fig 3: Front Combination Light, Bracket And Bolts D With Torque Specification
    G08159137
  11. Remove the bracket in the direction of the arrow (2) shown in the figure while pressing the bracket tabs in the direction of the arrow (1).

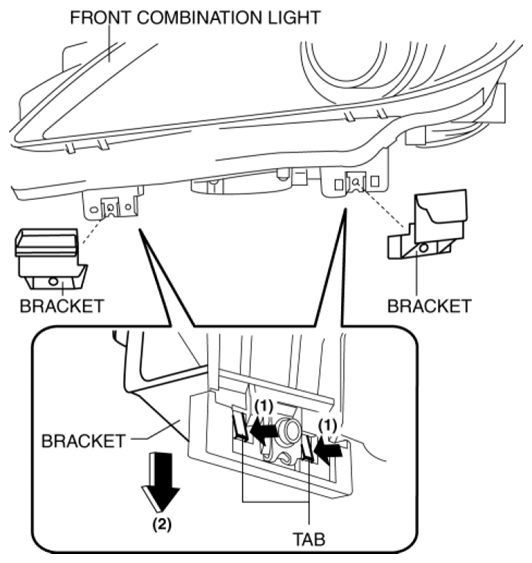

    Fig 4: Pressing Bracket Tabs
    G08159138
  12. Install in the reverse order of removal.
  13. Adjust the headlight aiming. (See HEADLIGHT AIMING .)
