Front Combination Light Bracket Replacement

WARNING: This page is about a different car, the 2012 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Verify that the front combination light is not damaged before using the repair bracket for installation when the original brackets are damaged. If the front combination light component is damaged, replace the light as a single unit.
  1. Cut off the front combination light bracket at the locations shown in the figure.

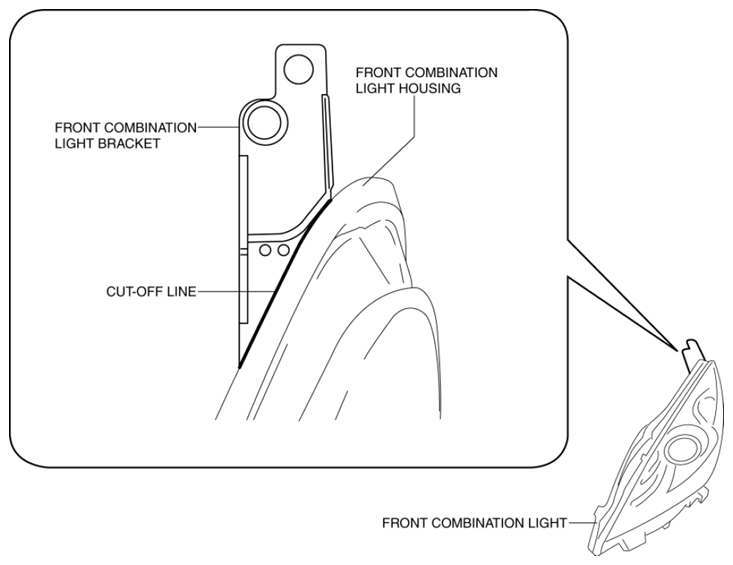

    Fig 1: Cutting Off Front Combination Light Bracket At Locations
    G08159139
  2. Smoothen the cut surfaces using sandpaper so that the repair bracket can be properly installed.
  3. Cut the projection at the position shown in the figure.

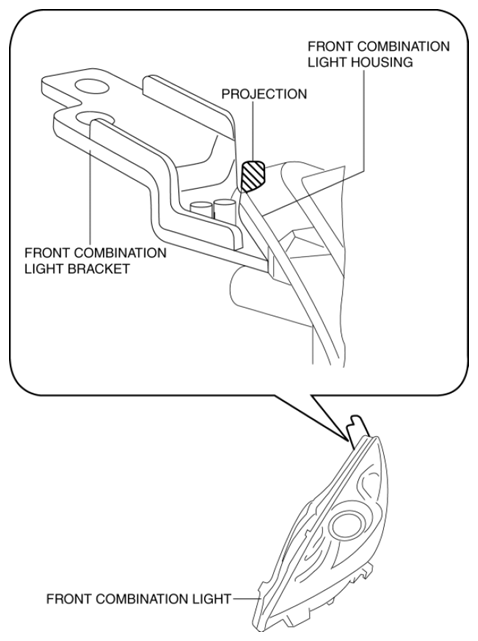

    Fig 2: Cutting Projection At Position
    G08159140
  4. After disconnecting the projection, verify that the projection is less than 1mm {0.04 in} from the front combination light housing.
  5. Securely attach the repair bracket to the front combination light using the screws.

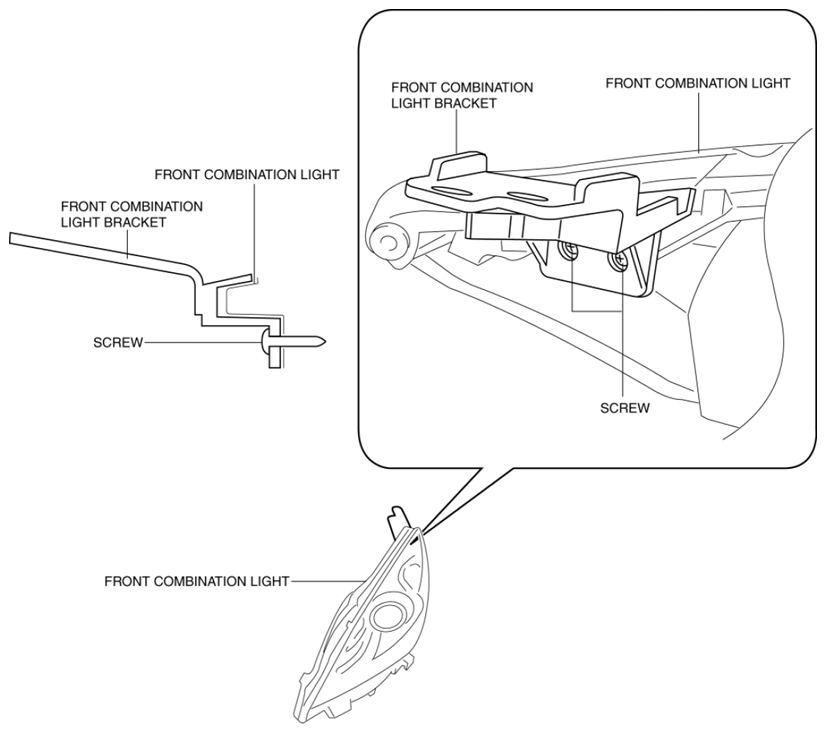

    Fig 3: Attaching Bracket To Front Combination Light Using Screws
    G08159141
