Discharge Headlight Service Warnings
>>
Discharge Headlight Control Module Service Warnings
Discharge Headlight Control Module Service Warnings
WARNING:
This page is about a different car, the 2012 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
Do not use a tester to inspect or disassemble a discharge headlight control module. Otherwise, it could result in electrical shock.

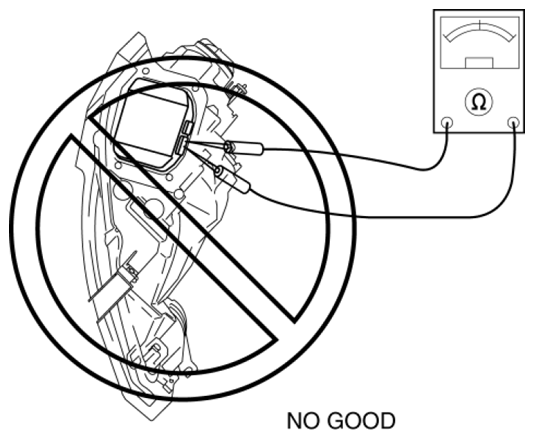

Fig 1: Precaution For Discharge Headlight Control Module Service
