Auto Leveling Sensor Removal/Installation
WARNING: This page is about a different car, the 2012 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
- Lift up the vehicle.
- Disconnect the quick release connector. (charcoal canister side) (See CHARCOAL CANISTER REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .) (See CHARCOAL CANISTER REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)

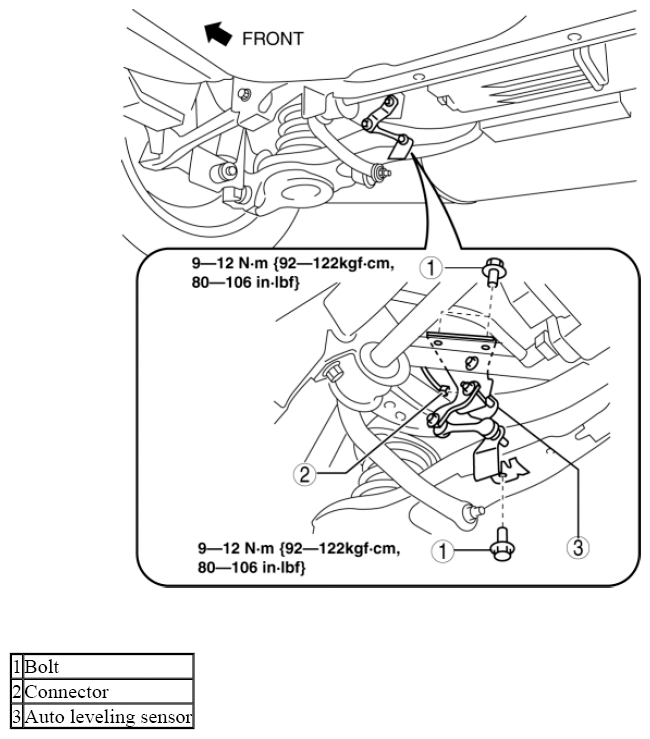

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Perform the headlight auto leveling system initialization. (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION .)
