Engine Control System On-Board Diagnostic (MZR 2.3 DISI Turbo) - Introduction, After Repair Procedure, DTC Table
>>
Foreword
>>
Troubleshooting Procedure
Troubleshooting Procedure

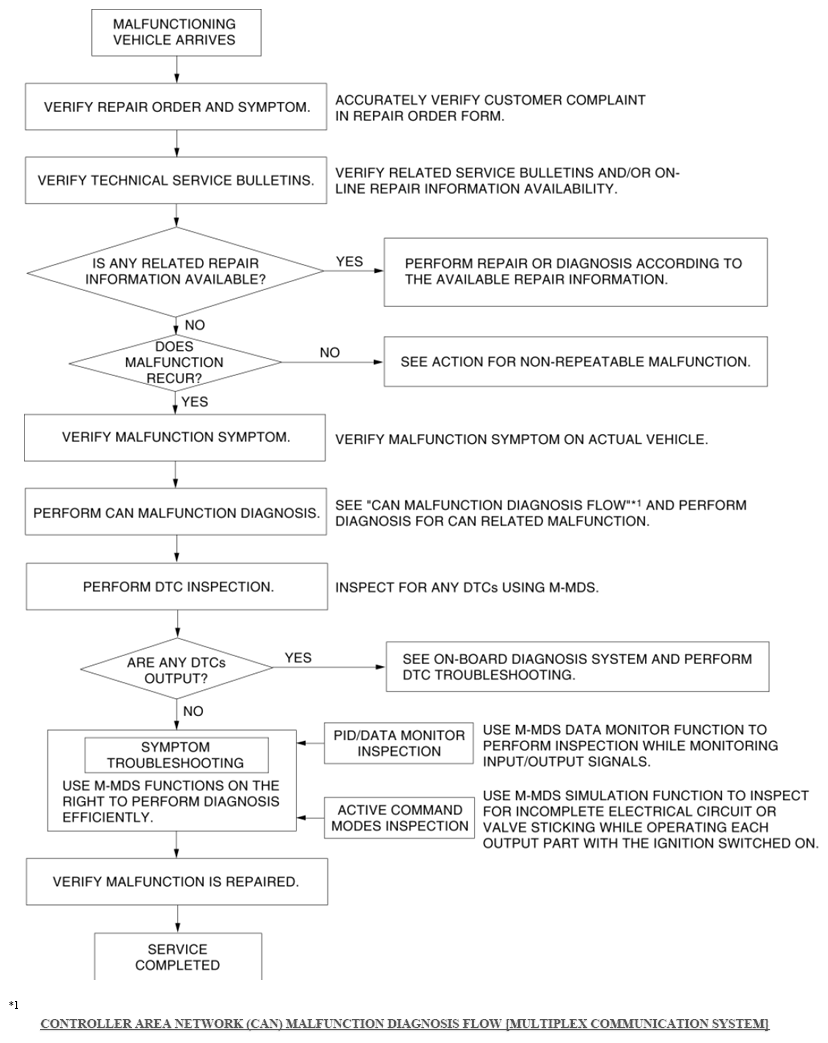

Fig 1: Troubleshooting Procedure Chart
Courtesy of MAZDA MOTORS CORP.
