Flywheel Inspection
- Remove the flywheel. (See
CLUTCH UNIT REMOVAL/INSTALLATION ).NOTE:

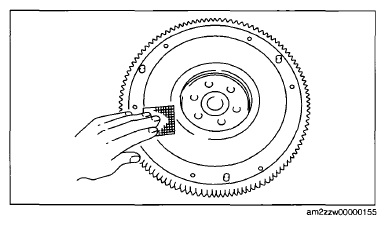

- Correct slight scratches and discoloration using sandpaper.
- Inspect the runout of the surface that contacts the clutch disc with the flywheel installed to the crankshaft.
- Inspect the surface that contacts the clutch disc for scratches, nicks, and discoloration.
- If there is any malfunction, replace the flywheel. (See CLUTCH UNIT REMOVAL/INSTALLATION ).
- Inspect the ring gear teeth for damage and wear.
- If there is any malfunction, replace the flywheel. (See CLUTCH UNIT REMOVAL/INSTALLATION ).
- Install the flywheel. (See CLUTCH UNIT REMOVAL/INSTALLATION ).

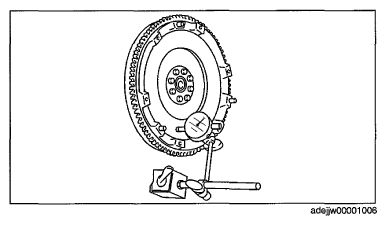

- Measure the runout of the surface that contacts the clutch disc using a dial gauge.
- If it exceeds the maximum specification, replace the flywheel. (See CLUTCH UNIT REMOVAL/INSTALLATION ).
Flywheel maximum runout 0.05 mm {0.002 in}
