Pilot Bearing Installation Note

Install the pilot bearing using the SSTs.

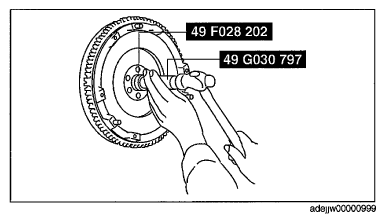

Fig 1: Installing Pilot Bearing Using SSTs
As shown in the figure, press-fit the pilot bearing to the position which is 0-0.4 mm {0.00-0.015 in} from the crankshaft end.

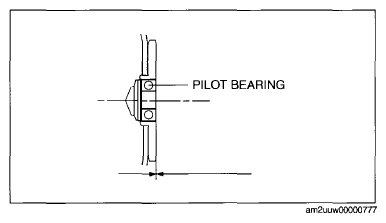

Fig 2: Identifying Pilot Bearing Position
