Clutch Unit Removal/Installation: Notes

CAUTION:

When newly replacing the clutch cover or the clutch disc, replace the clutch cover and the clutch disc as a set.

Remove the battery and battery tray and battery bracket. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5] ).
Remove the wheels and tires. (See GENERAL PROCEDURES (FRONT AND REAR AXLES) ).
Remove the fresh-air duct and air cleaner component as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION ).
Remove the EGR pipe installation bolt (intake manifold side). (See EGR PIPE REMOVAL/INSTALLATION ).

Fig 1: EGR Pipe Installation Bolt With Torque Specifications
Suspend the EGR pipe (intake manifold side) with a cable in place out of the way.
Drain the transaxle oil. (See TRANSAXLE OIL REPLACEMENT ).
Remove in the order indicated in the table.
Install in the reverse order of removal.

Fig 2: Identifying EGR Pipe

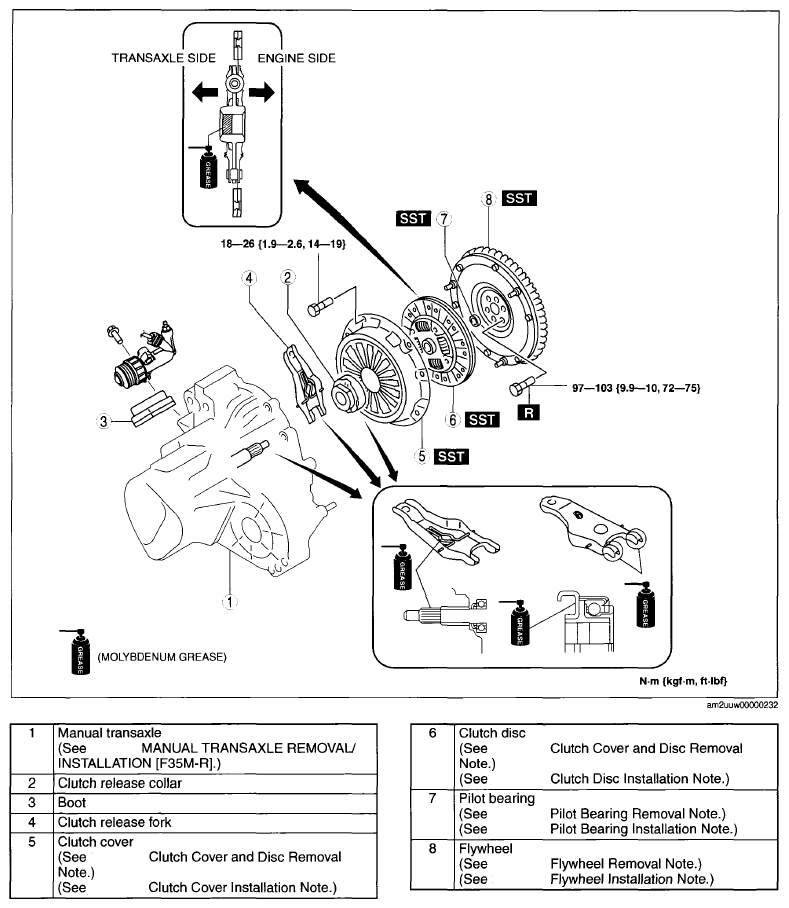

Fig 3: Clutch, Manual Transaxle, Clutch Disc, Pilot Bearing, Flywheel And Mounting Bolts With Torque Specifications
