Flywheel Removal Note

  1. Hold the flywheel using the SST  .
  2. Remove the lock bolts evenly and gradually in a crisscross pattern.
  3. Remove the flywheel.
  4. Inspect for oil leakage from the crankshaft rear oil seal.
    • If there is any malfunction, replace the crankshaft rear oil seal. (See REAR OIL SEAL REPLACEMENT ).

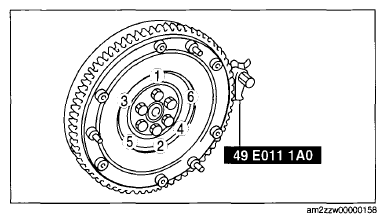

      Fig 1: Holding Flywheel Using SST
      G09132597
