Clutch Disc Installation Note

  1. Clean the splines of the clutch disc and primary shaft gear with a brush
  2. Apply a small amount of molybdenum grease to the splines.
  3. Hold the clutch disc position using the SST  .

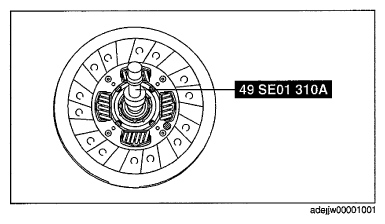

    Fig 1: Holding Clutch Disc Position Using SST
    G06941163
