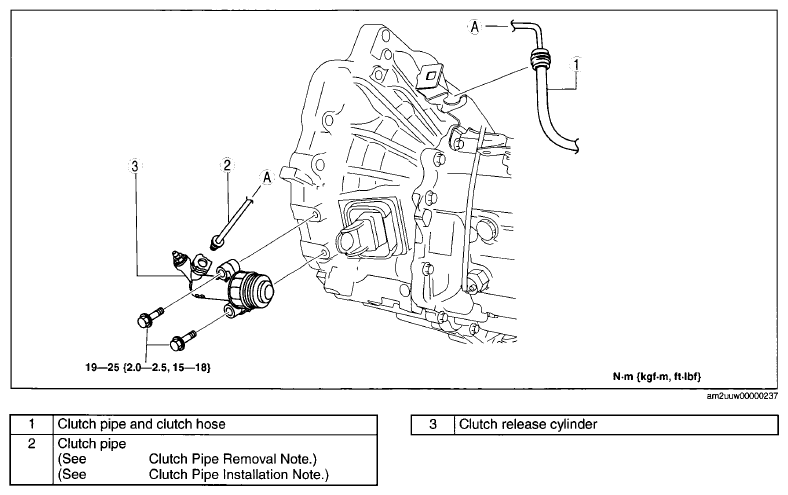

Clutch Release Cylinder Removal/Installation: Notes
CAUTION:
- Fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. If it is spilled, wipe it off immediately.
- If clutch system-related hydraulic parts are removed, supply brake fluid, bleed air, and inspect for fluid leakage after the installation.
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Bleed the air from the system. (See CLUTCH FLUID AIR BLEEDING/REPLACEMENT ).
- After installation, inspect the clutch pedal. (See CLUTCH PEDAL INSPECTION ).
