Starter Interlock Switch Installation Note

After installing the clutch pedal component, inspect the clutch pedal. (See CLUTCH PEDAL INSPECTION ).
Insert the new starter interlock switch into the pedal bracket hole in the direction indicated by arrow A.

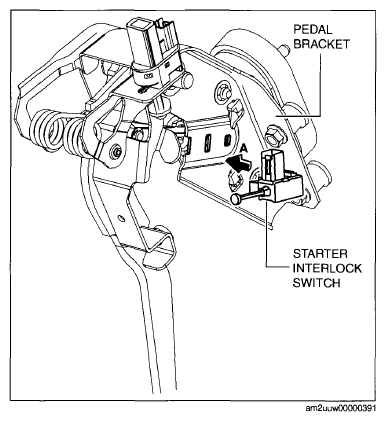

Fig 1: Installing Starter Interlock Switch Into Pedal Bracket Hole
Slide the starter interlock switch pressing it in the direction indicated by arrow B until it is locked.
Fully depress the clutch pedal in the direction of arrow C, and verify that a click sound from the starter interlock switch is heard.

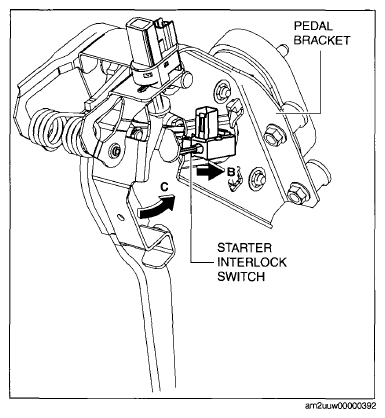

Fig 2: Depressing Clutch Pedal
