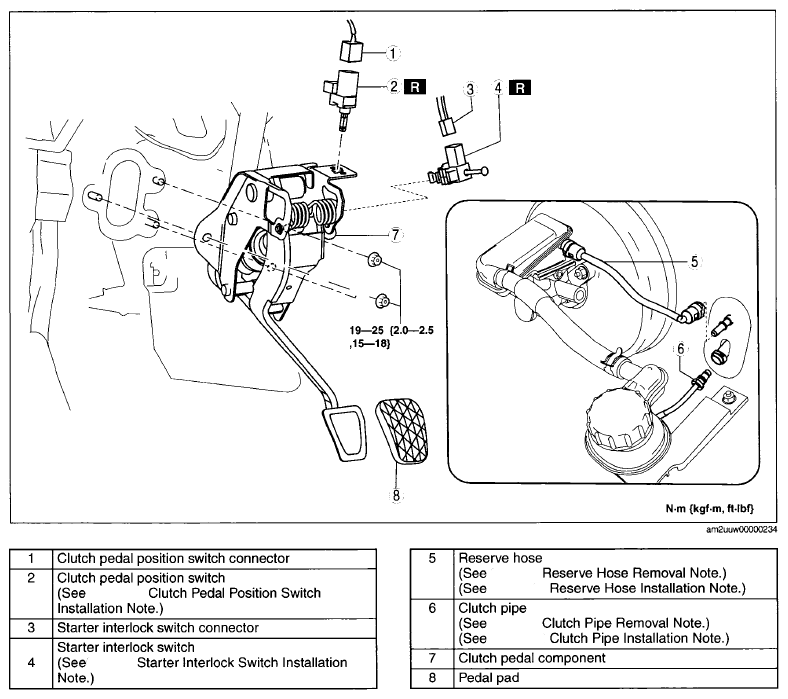

Clutch Pedal Removal/Installation: Notes
CAUTION:
- Fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. If it is spilled, wipe it off immediately.
- If clutch system-related hydraulic parts are removed, supply brake fluid, bleed air, and inspect for fluid leakage after the installation.
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5] ).
- Remove the battery clamp and battery box and battery. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5] ).
- Remove in the order indicated in the table.
- Plug the clutch pipe after removing it to avoid leakage.
- Install in the reverse order of removal.
- Fully depress the clutch pedal, and verify that the engine starts.
