Transaxle Oil Inspection
- Park the vehicle on level ground.
- Stop the engine and allow approx. 3 min before continuing.

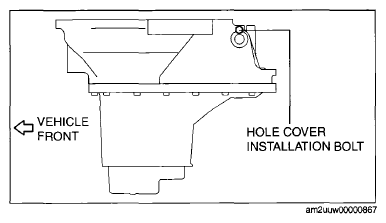

- Remove the hole cover.

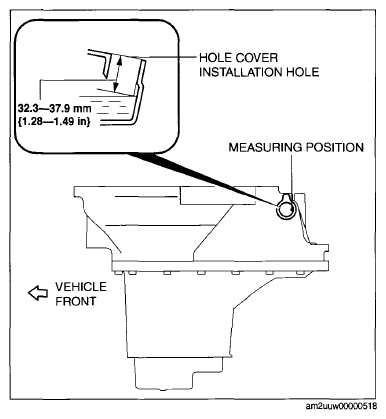

- Verify that the oil level is as shown in the figure.
- If the oil level is lower than the low level, add the specified amount and type of oil through the hole cover installation hole.
Manual transaxle oil grade API service GL-4
Manual transaxle oil viscosity SAE 75W-80
- Install the hole cover.
Tightening torque
8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
