Shift Cable and Select Cable Removal Note
Shift Cable and Select Cable Removal Note
Remove the both shift cable end and select cable end using a fastener remover.

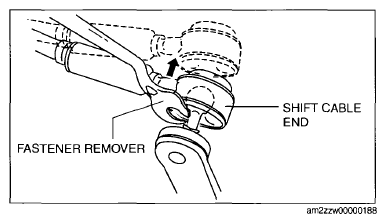

Fig 1: Removing Both Shift Cable And Select Cable End Using Fastener Remover
