No.4 Engine Mount Removal Note

Set the bracket and vacuum pipe out of the way to prevent interference with the SST as shown in the figure.
Using the bolts part number 99794 1025 or M10 x 1.25, length 25 mm {0.98 in} to install the SST to the position as shown in the figure
CAUTION:
- When attaching the SST in the engine rear side, install a suitable nut between the engine and the SST.

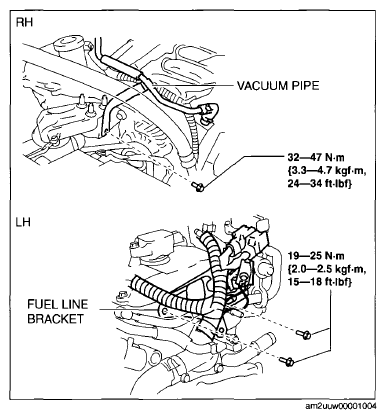

Fig 1: Vacuum Pipe Fuel Line Bracket And Mounting Bolts With Torque Specifications

Tightening torque

38-51 N.m {3.9-5.2 kgf.m, 29-37 ft.lbf}

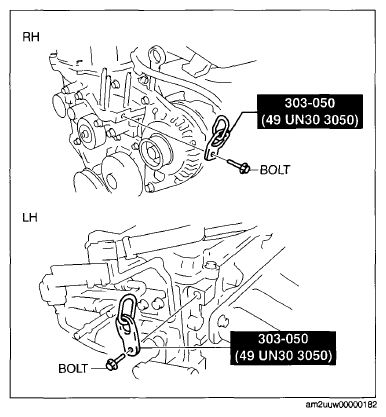

Fig 2: Removing Bolts Using SST
Install the front foot No.2 to both front shafts of the SST (49C017 5A0).

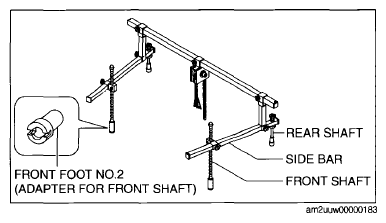

Fig 3: Installing Front Foot No.2 To Both Front Shafts Of SST
Install both rear shafts of the SST to the bolt of both shock absorbers as shown in the figure

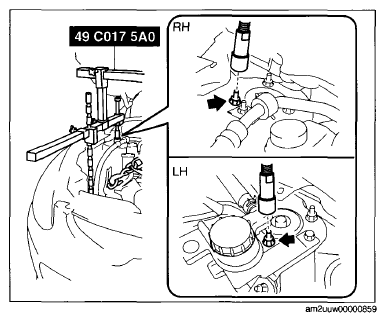

Fig 4: Installing Both Rear Shafts Of SST To Bolt Of Both Shock Absorbers
Set the cooler pipe out of the way to prevent interference with the front shaft of the SST as shown in the figure

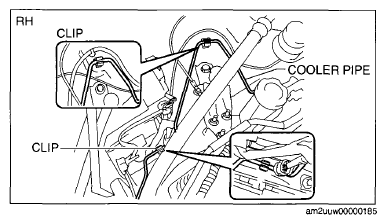

Fig 5: Identifying Cooler Pipe And Clip
Set the front combination light connector out of the way to prevent interference with the front shaft of the SST as shown in the figure
Insert front shafts into the shroud panel in the position shown in the figure

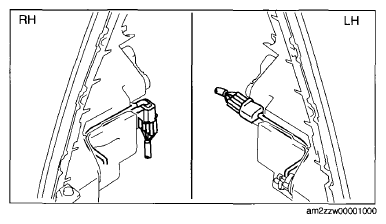

Fig 6: Identifying Combination Light Connector

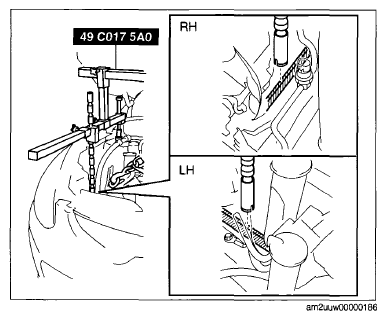

Fig 7: Inserting Front Shafts Into Shroud Panel
Adjust the positions of the SST side bars so that they are the same height (left and right) and horizontal. Make sure each joint is securely tightened
Apply tension to the chain to secure the engine.
Remove the No.4 engine mount.

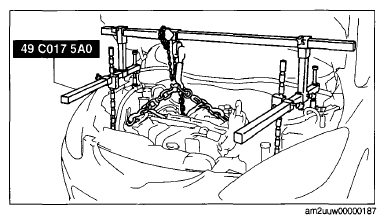

Fig 8: Adjusting Positions Of SST
