No.1 Engine Mount Removal Note
No.1 Engine Mount Removal Note
Remove the bolt A, B.
Loosen the bolt C and slide engine mount No.1 as shown in the figure.

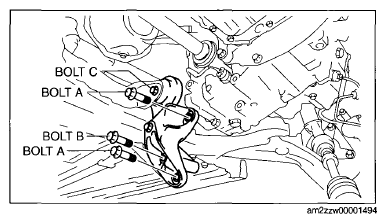

Fig 1: Removing No.1 Engine Mounting Bolts
