No.1 Engine Mount Installation Note
CAUTION:
- Align the transaxle bolt holes and the engine mount exactly. Any misalignment can result in bolts and bolt holes becoming damaged or stripped during installation.
- Adjust the SST (engine support), and align the hole of the No.1 engine mount with the bolt hole of transaxle.

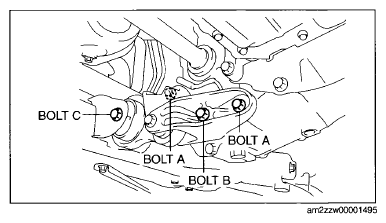

- Tighten the bolts in the order of A to C
Tightening torque
A, B: 54-61 N.m {5.5-6.2 kgf.m, 40-44 ft.lbf}
C: 43-55 N.m {4.4-5.6 kgf.m, 32-40 ft.lbf}
