Manual Transaxle Removal Note

WARNING:

Remove the transaxle carefully, holding it steady. If the transaxle falls it could be damaged or cause injury.

Adjust the SST and lean the engine toward the transaxle.

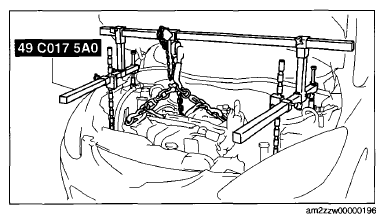

Fig 1: Adjusting SST And Lean Engine Toward Transaxle
Support the transaxle on a jack.
Remove the transaxle mounting bolts.
Remove the transaxle.

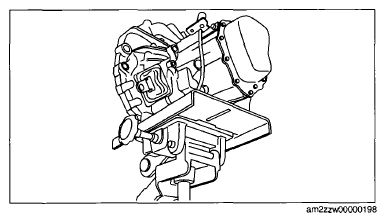

Fig 2: Identifying Transaxle On Jack
