Rear Buckle Removal/Installation

  1. Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION ).
  2. Remove the bolts.
  3. Remove the rear buckle (RH) and rear buckle (center).
  4. Remove the rear buckle (LH).
  5. Install in the reverse order of removal.

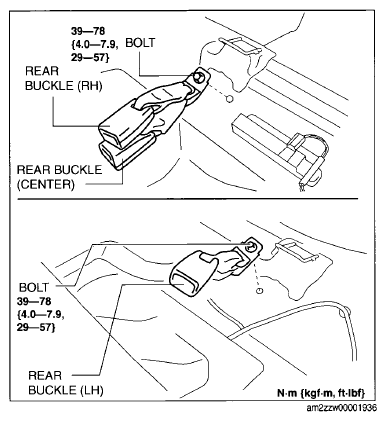

    Fig 1: Rear Buckle And Mounting Bolt With Torque Specifications
    G09133045
