2 Touring, 1.5L Eng VIN Z, Standard Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System [MZR 1.5]
>>
Control System Wiring Diagram
Control System Wiring Diagram

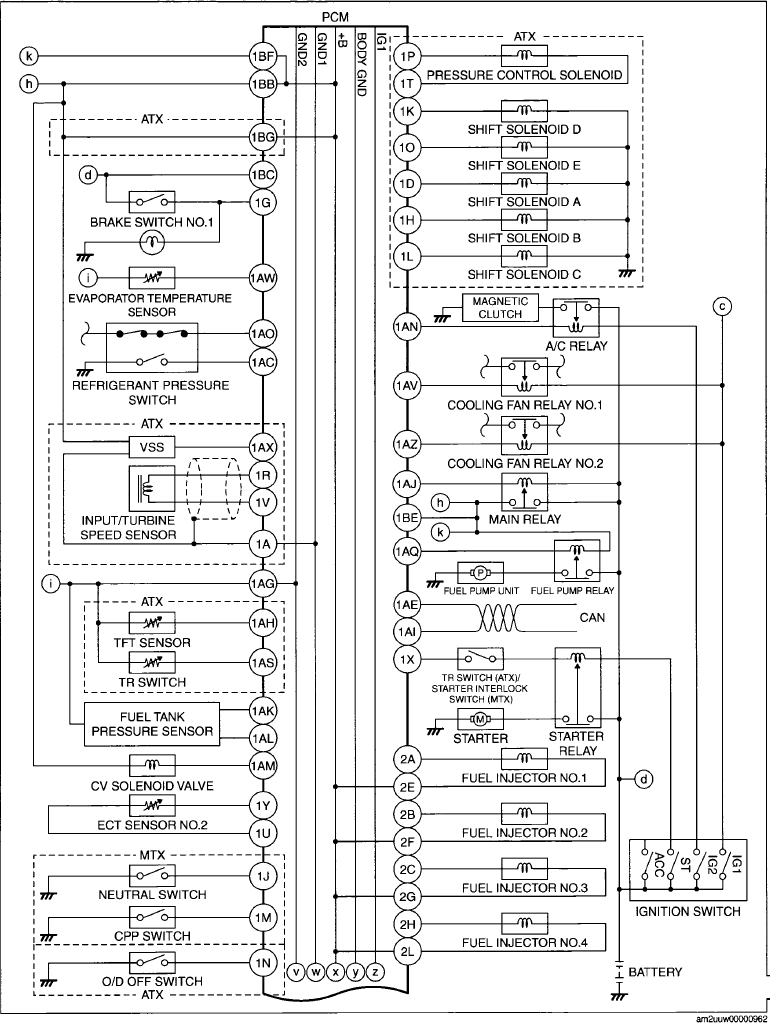

Fig 1: Control System Wiring Diagram (1 Of 2)

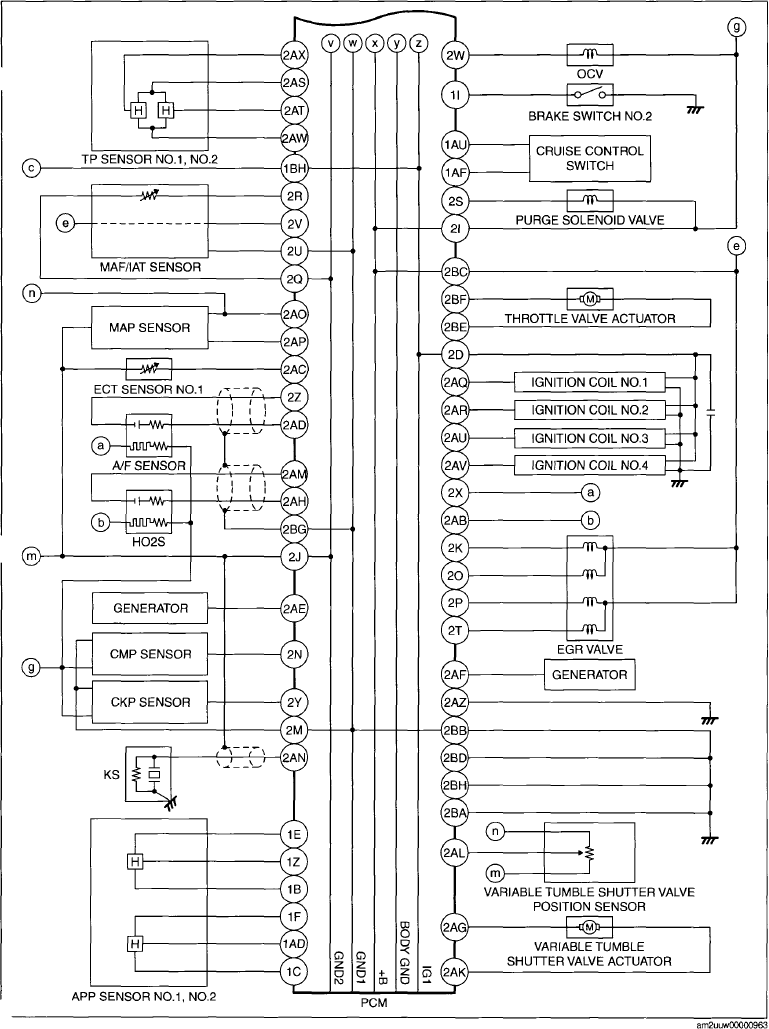

Fig 2: Control System Wiring Diagram (2 Of 2)
