Instrument Cluster Disassembly/Assembly

CAUTION:
  • Do not drop the instrument cluster or damage the printed board. This will lead to a system malfunction.
  1. Disconnect the negative battery cable.
  2. Remove the meter hood. (See METER HOOD REMOVAL/INSTALLATION ).
  3. Remove the instrument cluster. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .
  4. Disassemble in the order indicated in the figure.

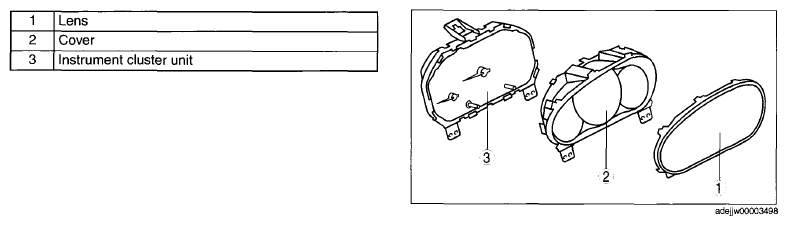

    Fig 1: Identifying Instrument Cluster Unit, Cover And Lens
    G09133675
  5. Assemble in the reverse order of disassembly.
