Ambient Temperature Sensor Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION ).
  3. Remove in the order indicated in the table.

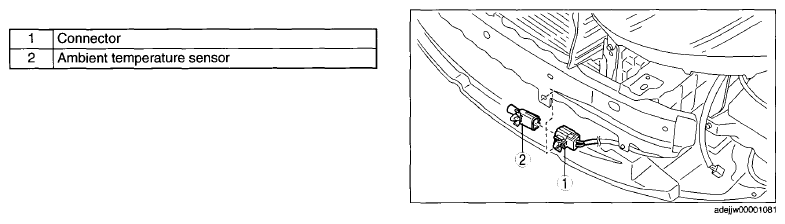

    Fig 1: Identifying Ambient Temperature Sensor And Connector
    G09133678
  4. Install in the reverse order of removal.
