Rearview Mirror Removal

  1. Insert a flathead screwdriver between the rearview mirror and mirror base.
  2. Insert a tape-wrapped flathead screwdriver to the position shown in the figure and press the center part of the spring.

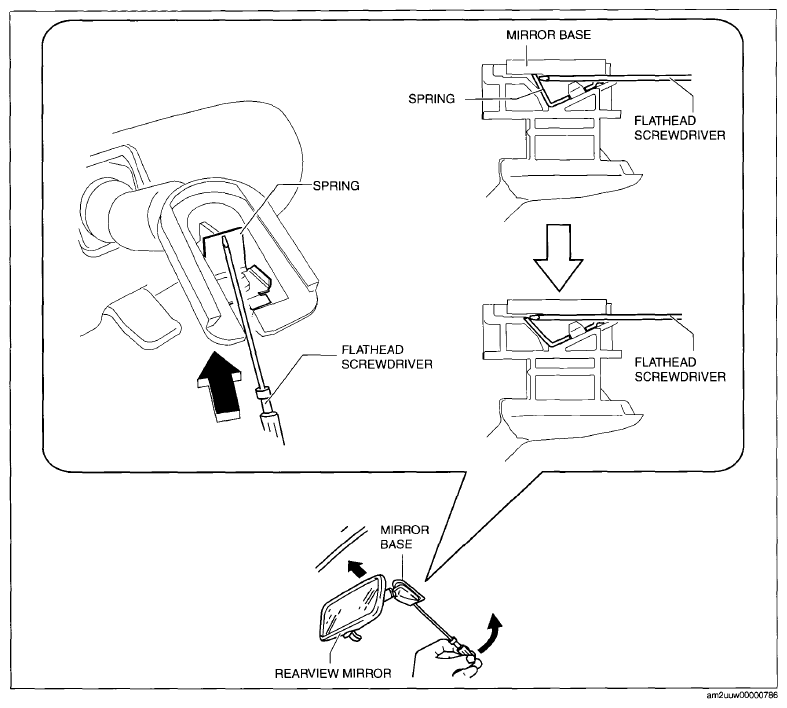

    Fig 1: Rearview Mirror Removal Procedure
    G09133288
  3. Pull out the rearview mirror toward the vehicle rear.
