Passenger Side

  1. Disconnect the negative battery cable.
  2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION ).
  3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION ).
  4. Remove the power window subswitch. (See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY ).
  5. Verify that the continuity is as indicated in the table using a tester.
    • If not as indicated in the table, replace the power window subswitch.

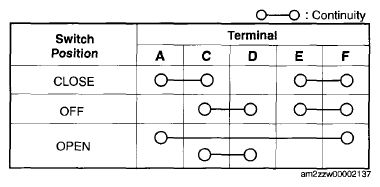

      Fig 1: Power Window Subswitch Continuity Reference Chart
      G09133269

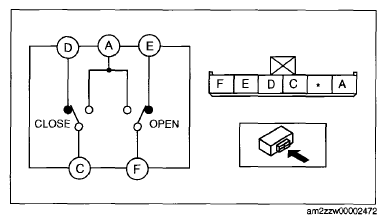

      Fig 2: Power Window Subswitch Circuit Diagram (Passenger's Side)
      G09133270
