Passenger's Side

  1. Disconnect the negative battery cable.
  2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION ).
  3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION ).
  4. Disconnect the power window motor connector.
  5. Apply battery positive voltage and connect the ground to the power window motor terminals, and then inspect the power window motor operation.
    • If the power window motor does not operate as indicated in the table, replace it.
    Operation Terminal
    E F
    Open Ground B+
    Close B+ Ground

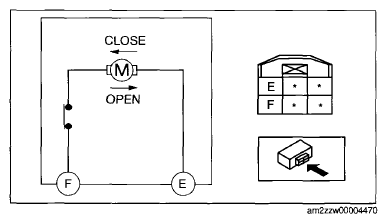

    Fig 1: Power Window Motor Circuit Diagram (Passenger Side)
    G09133266
