Outer Mirror Glass Removal

  1. Disconnect the negative battery cable.
  2. Press area A of the outer mirror glass so that area B moves outward.

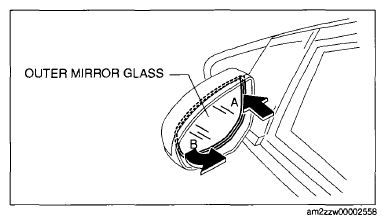

    Fig 1: Identifying Outer Mirror Glass
    G09133278
  3. Detach pin A while lifting up the inside of the mirror glass holder.
  4. Pull the outer mirror glass and remove pins B.
  5. Disconnect the connector. (Vehicles with heated outer mirror)
  6. Remove the outer mirror glass.

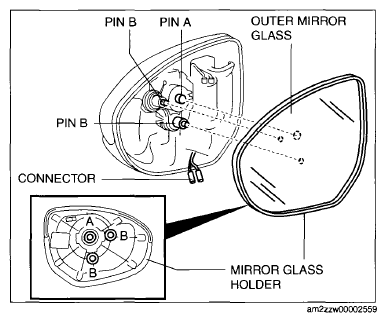

    Fig 2: Outer Mirror Glass And Components
    G09133279
