Front Seat Back Component Removal/Installation
>>
Band Installation Note
Band Installation Note
Install the band with the end pointed to the front.

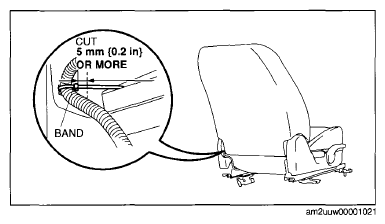

Cut off the end of the band at the position shown in the figure.
Fig 1: Identifying Band Cut Off Area
