Liftgate Opener Switch Inspection

  1. Disconnect the negative battery cable.
  2. Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION ).
  3. Remove the liftgate opener switch. (See LIFTGATE OPENER SWITCH REMOVAL/INSTALLATION ).
  4. Verify the continuity of liftgate opener switch terminals A and B.

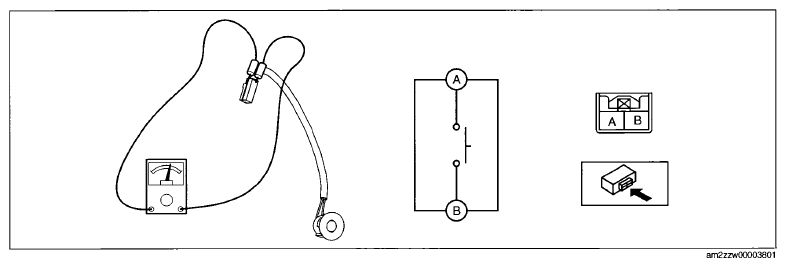

    Fig 1: Liftgate Opener Switch Circuit
    G09133457
  5. Verify that the continuity is as indicated in the table.
    Fig 2: Liftgate Opener Switch Continuity Reference Chart
    G06731995
    • If not as indicated in the table, replace the liftgate opener switch.
