Liftgate Lock Striker Removal/Installation

  1. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION ).
  2. Remove the bolts, then remove the liftgate lock striker.
  3. Install in the reverse order of removal.
  4. Adjust the liftgate lock striker. (See LIFTGATE ADJUSTMENT ).

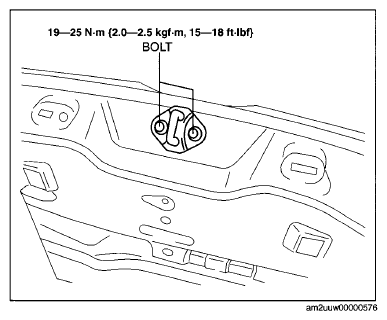

    Fig 1: Liftgate Lock Striker Bolt With Torque Specifications
    G09133440
