Hood Release Cable Removal/Installation

  1. Disconnect the negative battery cable. (Vehicle with front fog lights)
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION ).
  3. Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION ).
  4. Remove the hood release lever. (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION ).
  5. Remove the hood release cable from clips A.
  6. Remove the clips B.
  7. Disconnect the hood latch from the hood release cable.
  8. Remove the hood release cable from outside of the vehicle.

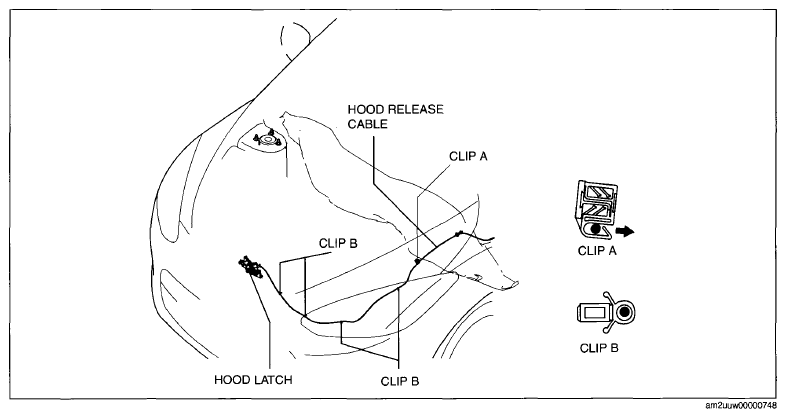

    Fig 1: Identifying Hood Release Cable, Hood Latch And Clip
    G09133376
  9. Install in the reverse order of removal.
