Hood Latch Switch Inspection

  1. Disconnect the negative battery cable.
  2. Remove the hood latch. (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION ).
  3. Press the latch in using a flathead screwdriver to inspect the latch lever condition.

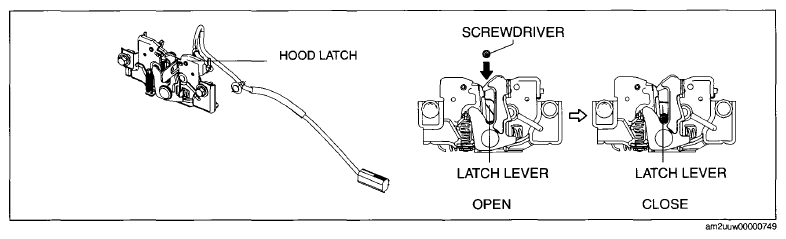

    Fig 1: Identifying Hood Latch Lever (Open And Closed)
    G09133377
  4. Verify that the continuity is as indicated in the table.
    • If not as indicated in the table, replace the hood latch.

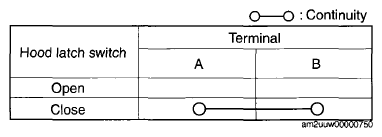

      Fig 2: Hood Latch Switch Continuity Reference Chart
      G09133378

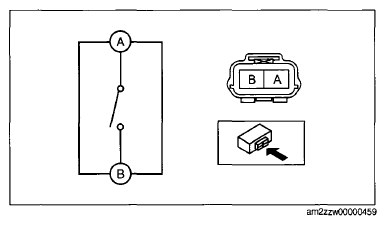

      Fig 3: Hood Latch Switch Circuit Diagram
      G09133379
