Door Lock Switch Inspection

  1. Inspect for continuity between the door lock switch terminals.
    • If not as specified, replace the door lock switch.
      Fig 1: Door Lock Switch Continuity Reference Chart
      G04861117

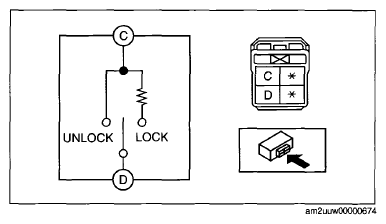

      Fig 2: Identifying Door Lock Switch Circuit
      G09133371
