Control System (Includes Automatic Transaxle Control Information)

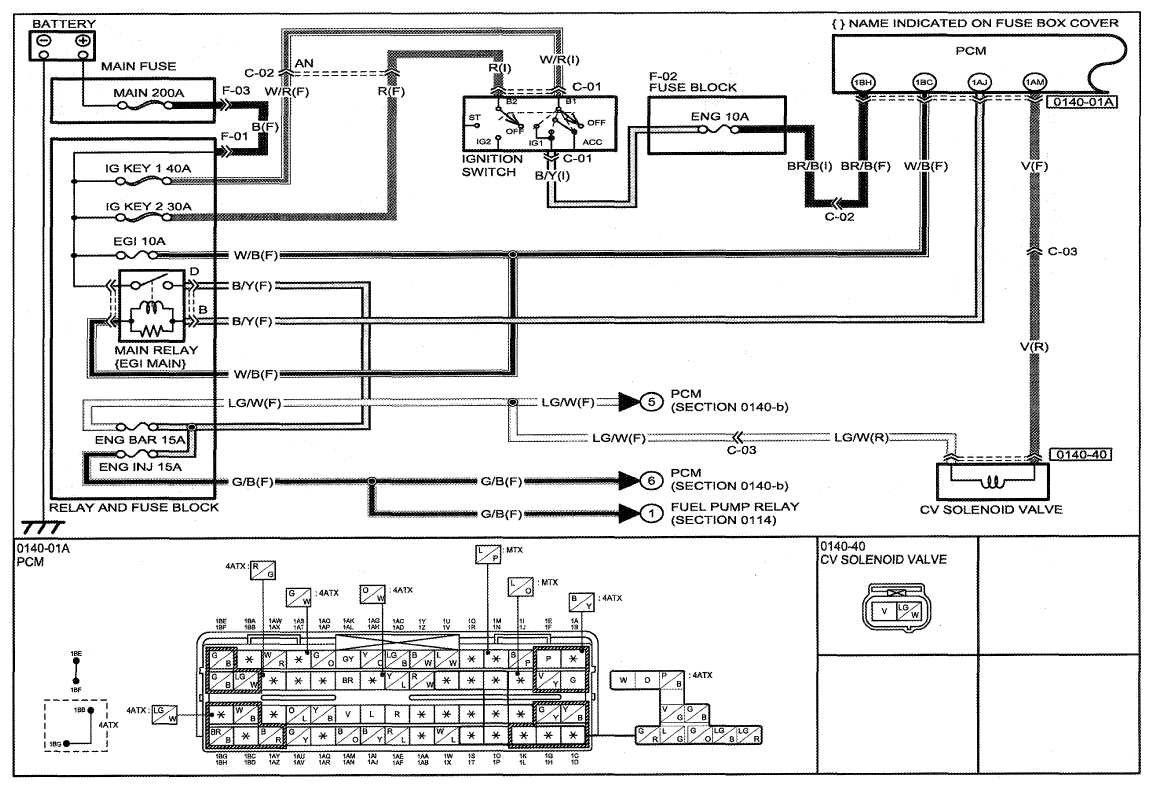

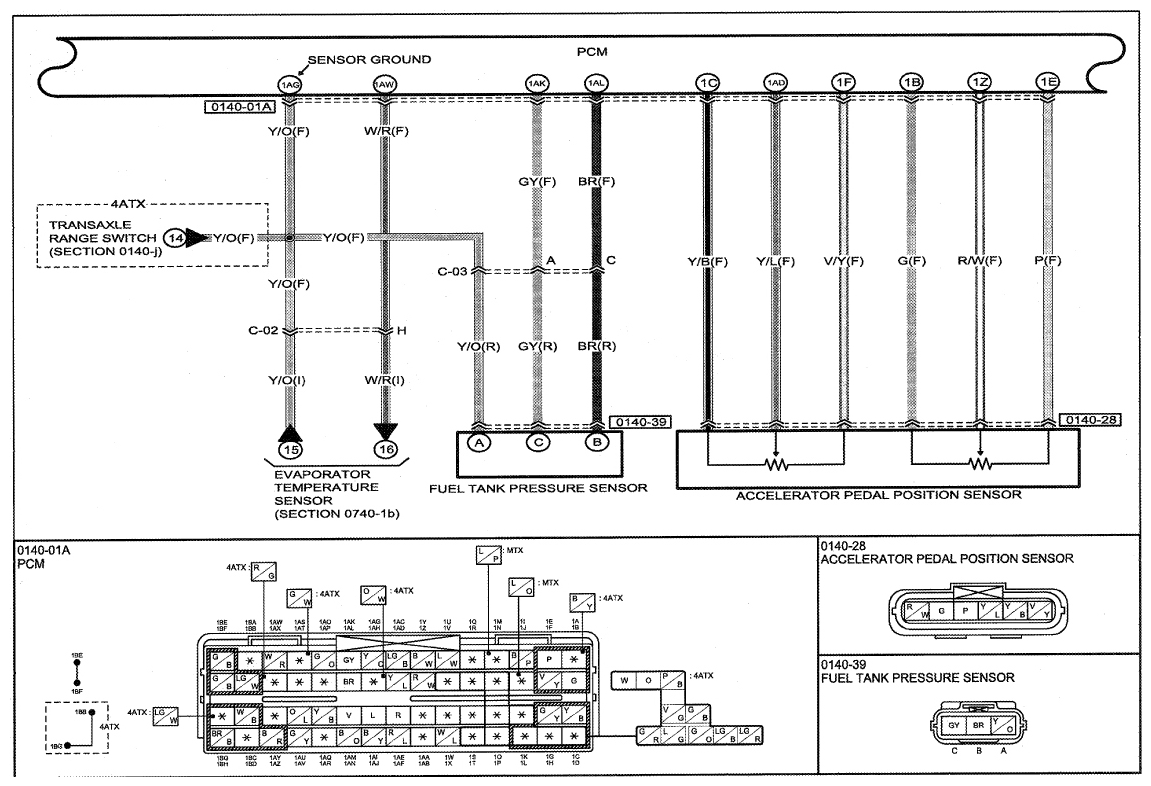

Fig 1: Control System (Includes Automatic Transaxle Control Information) Wiring Diagram - 140-A (1 Of 2)

Fig 2: Control System (Includes Automatic Transaxle Control Information) Wiring Diagram - 140-A (2 Of 2)

Fig 3: Control System (Includes Automatic Transaxle Control Information) Wiring Diagram - 140-B (1 Of 2)

Fig 4: Control System (Includes Automatic Transaxle Control Information) Wiring Diagram - 140-B (2 Of 2)

Fig 5: Control System (Includes Automatic Transaxle Control Information) Wiring Diagram - 140-C (1 Of 2)

Fig 6: Control System (Includes Automatic Transaxle Control Information) Wiring Diagram - 140-C (2 Of 2)

Fig 7: Control System (Includes Automatic Transaxle Control Information) Wiring Diagram - 140-D (1 Of 2)

Fig 8: Control System (Includes Automatic Transaxle Control Information) Wiring Diagram - 140-D (2 Of 2)

Fig 9: Control System (Includes Automatic Transaxle Control Information) Wiring Diagram - 140-E (1 Of 2)

Fig 10: Control System (Includes Automatic Transaxle Control Information) Wiring Diagram - 140-E (2 Of 2)

Fig 11: Control System (Includes Automatic Transaxle Control Information) Wiring Diagram - 140-F (1 Of 2)

Fig 12: Control System (Includes Automatic Transaxle Control Information) Wiring Diagram - 140-F (2 Of 2)

Fig 13: Control System (Includes Automatic Transaxle Control Information) Wiring Diagram - 140-G (1 Of 2)

Fig 14: Control System (Includes Automatic Transaxle Control Information) Wiring Diagram - 140-G (2 Of 2)

Fig 15: Control System (Includes Automatic Transaxle Control Information) Wiring Diagram - 140-H (1 Of 2)

Fig 16: Control System (Includes Automatic Transaxle Control Information) Wiring Diagram - 140-H (2 Of 2)

Fig 17: Control System (Includes Automatic Transaxle Control Information) Wiring Diagram - 140-I (1 Of 2)

Fig 18: Control System (Includes Automatic Transaxle Control Information) Wiring Diagram - 140-I (2 Of 2)

Fig 19: Control System (Includes Automatic Transaxle Control Information) Wiring Diagram - 140-J (1 Of 2)

Fig 20: Control System (Includes Automatic Transaxle Control Information) Wiring Diagram - 140-J (2 Of 2)

Fig 21: Control System (Includes Automatic Transaxle Control Information) Wiring Diagram - 140-K (1 Of 2)

Fig 22: Control System (Includes Automatic Transaxle Control Information) Wiring Diagram - 140-K (2 Of 2)

Fig 23: Control System (Includes Automatic Transaxle Control Information) Wiring Diagram - 140-L (1 Of 2)

Fig 24: Control System (Includes Automatic Transaxle Control Information) Wiring Diagram - 140-L (2 Of 2)

Fig 25: Control System (Includes Automatic Transaxle Control Information) Wiring Diagram - 140-M (1 Of 2)

Fig 26: Control System (Includes Automatic Transaxle Control Information) Wiring Diagram - 140-M (2 Of 2)
