Audio Control Switch Removal/Installation: Notes

  1. Disconnect the negative battery cable and wait for 1 min or more.
  2. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION ).
  3. Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION ).
  4. Remove in the order indicated in the table.

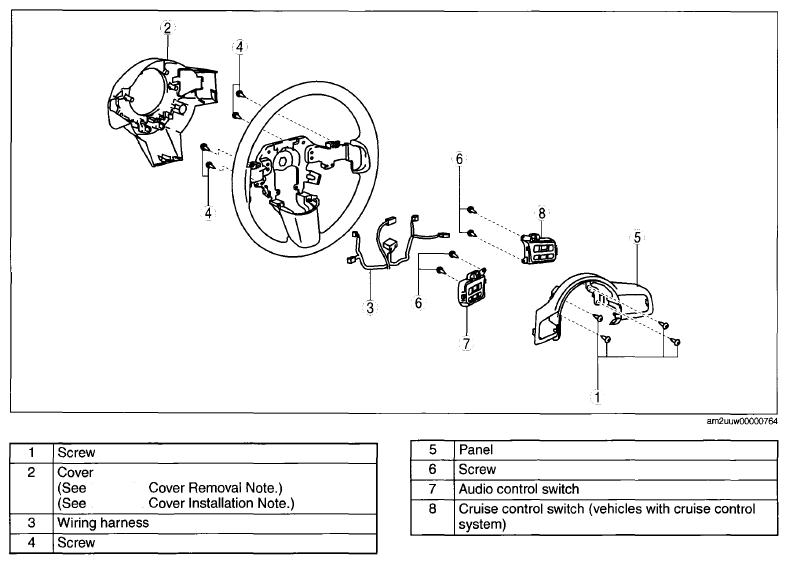

    Fig 1: Identifying Audio Control Switch Components
    G09133636
  5. Install in the reverse order of removal.
