Liftgate Latch Switch Inspection

  1. Disconnect the negative battery cable.
  2. Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION ).
  3. Remove the liftgate latch and lock actuator. (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION ).
  4. Press the latch in using a flathead screwdriver to inspect the latch lever condition.

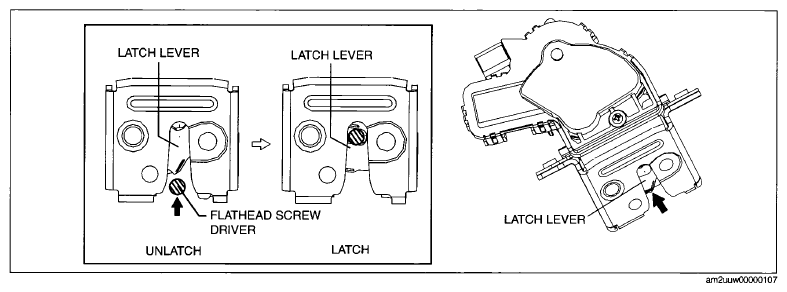

    Fig 1: Inspecting Latch Lever Condition
    G09133435
  5. Verify that the continuity is as indicated in the table.
    • If not as indicated in the table, replace the liftgate latch and lock actuator.
      Fig 2: Liftgate Latch Switch Continuity Reference Chart
      G09133438
      Fig 3: Liftgate Latch Switch Circuit Diagram
      G09133439
