Keyless Receiver Removal/Installation [Keyless Entry System]

  1. Disconnect the negative battery cable.
  2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION ).
  3. Remove in the order indicated in the table.

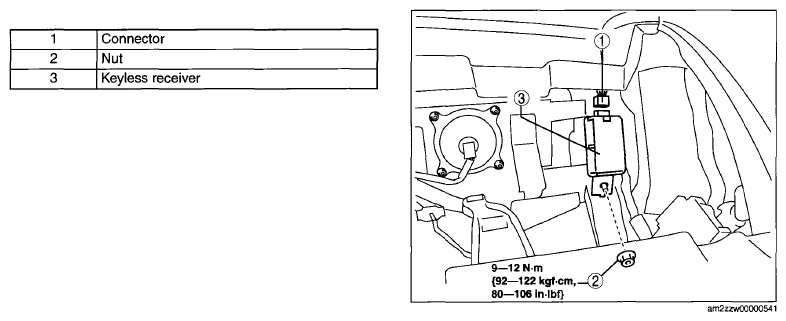

    Fig 1: Keyless Receiver, Connector And Nut With Torque Specifications
    G09133441
  4. Install in the reverse order of removal.
