Steering Shaft Installation Note

CAUTION:
  • Do not apply a shock in the axial direction of the shaft.
  1. Lock the tilt lever.
  2. Tighten nut A.
  3. Tighten nut B.
  4. Tighten bolt C.

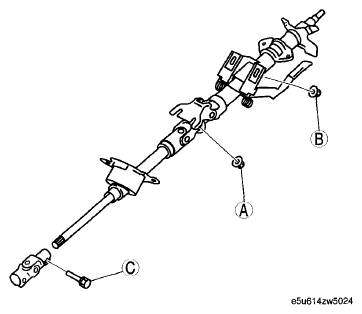

    Fig 1: Steering Shaft Components
    G06150542Courtesy of MAZDA MOTORS CORP.
