No. 3 Advanced Keyless Entry Function Inoperative [Advanced Keyless And Start System]

Advanced keyless entry function inoperative
POSSIBLE CAUSE
  • Malfunction in the transmitter (advanced key).
  • Malfunction in the keyless control module.
  • Malfunction in the keyless receiver.
  • Malfunction in the keyless antenna.
  • Wrong usage.

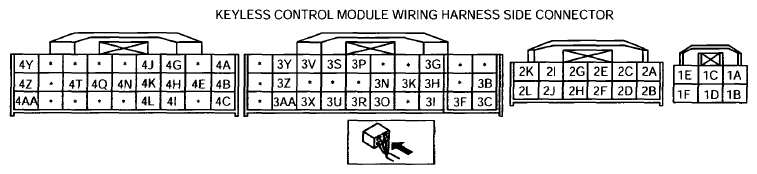

G07878004
DIAGNOSTIC PROCEDURE

STEP INSPECTION ACTION
1
  • Retrieve the advanced keyless system OTC using the M-MDS.
  • Are there DTC displayed?
Yes Perform the applicable DTC diagnostic procedures.
No Go to the next step.
2
  • Did the customer attempt to operate each front doors and trunk rid using the request switch?
Yes Go to the next step.
No Inspect the advanced keyless system operations using the request switch, if the advanced keyless system is inoperative, then go to the next step.
3
  • Prepare the followings:
    • Make sure that there is no transmitter (advanced key) inside the passenger compartment.
    • Close all doors including trunk rid.
    • Remove the key from the steering lock.
    • Make sure that start knob is to the LOCK position. (Do not Press the knob)
    • Make sure that the transmitter (advanced key) is within the advanced keyless system operative area (within 80 cm {2.6 ft}  from front door)
  • Does the advanced keyless system operate properly?
Yes The system is normal. Explain the advanced keyless system operation.
No Go to the next step.
4
  • Replace with a transmitter (advanced key) battery known to be good.
  • Operate the transmitter (advanced key).
  • Does the keyless entry system operate properly?
Yes Replace the transmitter (advanced key). Then go to the next step.
No Go to the next step.
5
  • Measure the voltage at the keyless control module terminals 4H, 4J and 4L while operating the request switch.
    • Operate driver's side front door request switch (4J): 5.0 V→1.0 V or less
    • Operate passenger's side front door request switch (4H): 5.0 V→1.0 V or less
    • Operate trunk lid request switch (4L): 5.0 V→1.0 V or less
  • Is the voltage as above?
Yes Go to the next step.
No inspect and repair the applicable wiring harness as necessary, then go to the next step.
6
  • Turn the start knob to LOCK position with mechanical key is not in ignition switch, and the start knob is not pushed.
  • Measure the voltage following keyless control module connector.
    • Terminal 3O (key reminder switch): below 1.0 V
    • Terminal 3N (start knob (push switch)): below 1.0 V
    • Terminal 3I (ACC voltage): below 1.0 V
    • Terminal 3B (IG1 voltage): below 1.0 V
  • Is the signal voltage normal?
Yes Go to the next step.
No Inspect and repair for open or short circuit in wiring between the suspect switch and keyless control module, then go to the next step.
7
  • Simulate the following keyless antenna using the M-MDS:
    • ANT_RF# (keyless antenna (RH): terminals 2A and 2B)
    • ANT_LF# (keyless antenna (LH): terminals 2C and 2D)
    • ANT_BK# (keyless antenna (rear): terminals 2E and 2F)
    • ANT_INN1# (keyless antenna (trunk): terminals 2G and 2H)
    • ANT_INN2# (keyless antenna (rear No. 2): terminals 21 and 2J)
    • ANT_INN3# (keyless antenna (center): terminals 2K and 2L)
    • ANT_INN4# (keyless antenna (instrument panel): terminals 3G and 3H)
  • Does each antenna operate properly (ON/OFF)?
Yes Go to the next step.
No
  • Inspect for open or short circuit between suspect keyless antenna and keyless control module.
  • If the wiring harness is not normal, repair or replace for open or short circuit, then go to the next step.
8
  • Measure the pulse profile using an oscilloscope at the keyless control module terminal 3U while operating the transmitter (advanced key).
  • Is the pulse profile become long at moment of transmitter operation?
Yes Go to the next step.
No
  • Inspect the wiring harness between the keyless receiver and the keyless control module.
    • If the harness is normal, replace the keyless receiver.
    • If the harness is malfunctioning, repair the wiring harness.
  • Go to the next step.
9
  • Measure the voltage at the keyless control module terminal 1A while operating the request switch.
    • Unlock: 1.0 V or less→B+→1.0 V or less
  • Is the voltage as above?
Yes Inspect the keyless control module and replace as necessary.
No Inspect and repair the wiring harness between keyless control module and door lock actuator.
If the wiring harness is normal, inspect the door lock actuator.
10
  • Does the keyless entry system operate properly?
Yes Troubleshooting completed. Explain repairs to the customers
No Re-inspect the malfunction symptoms, then repeat form Step 1 if malfunction recurs.
