Back Trim Removal/Installation

  1. Remove the following parts:
    1. Console (See CONSOLE REMOVAL/INSTALLATION )
    2. Quarter trim (See QUARTER TRIM REMOVAL/INSTALLATION )
    3. Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION )
    4. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION )
    5. Aeroboard (See AEROBOARD REMOVAL/INSTALLATION )
    6. Front seat back bar garnish (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION )
  2. Pull the open hook lever outward and remove it while pinching the tabs as shown in the illustration (except the power retractable hardtop).

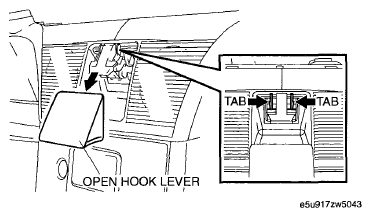

    Fig 1: Pulling Open Hook Lever Outward
    G06149766Courtesy of MAZDA MOTORS CORP.
  3. Remove the fasteners.

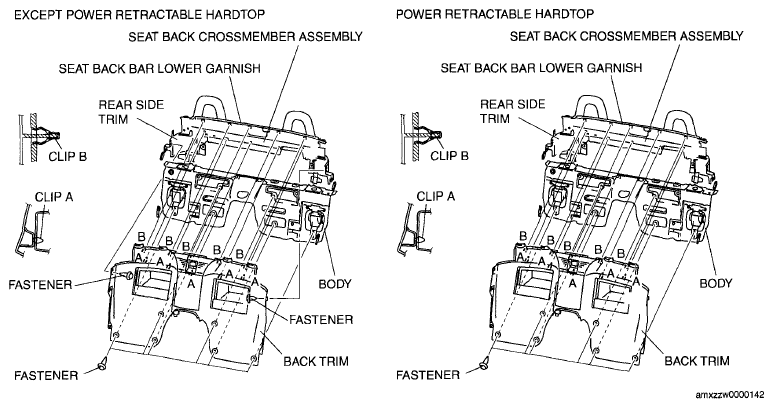

    Fig 2: Back Trim Fasteners
    G06149767Courtesy of MAZDA MOTORS CORP.
  4. Pull the back trim outward and detach clips A and B.
  5. Remove the back trim.
  6. Install in the reverse order of removal.
