MX-5 Miata Touring, Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Symptom Troubleshooting [Advanced Keyless System And Keyless Start System]
>>
Keyless Entry System Wiring Diagram [Advanced Keyless And Start System]
Keyless Entry System Wiring Diagram [Advanced Keyless And Start System]

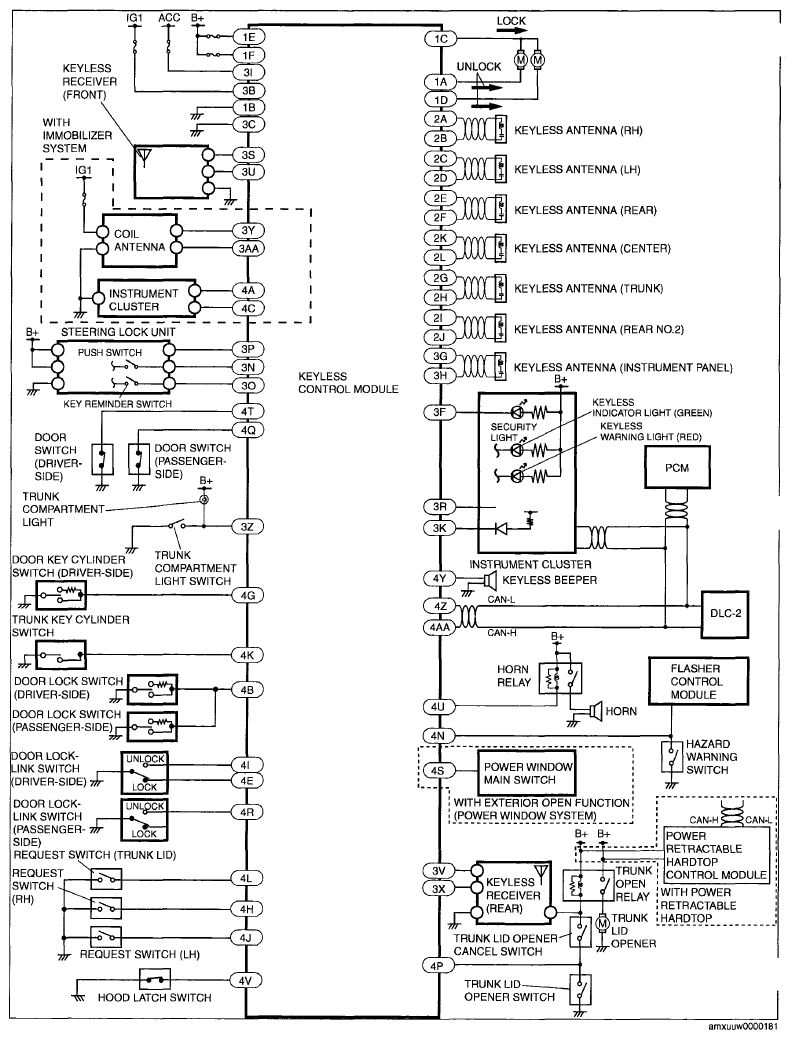

Fig 1: Keyless Entry System Wiring Diagram (Advanced Keyless And Start System)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
