Trunk Mat Removal/Installation

  1. Remove the fasteners.
  2. Remove the trunk mat.
  3. Remove the seal fasteners.
  4. Install in the reverse order of removal.

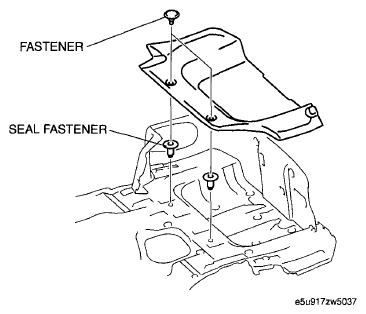

    Fig 1: Seal Fasteners And Trunk Mat Fasteners
    G06149777Courtesy of MAZDA MOTORS CORP.
