Side Panel Removal/Installation

  1. Pull the side panel outward and detach clips A.
  2. Pull the side panel rearward and detach tab B from the dashboard.
  3. Remove the side panel.
  4. Install in the reverse order of removal.

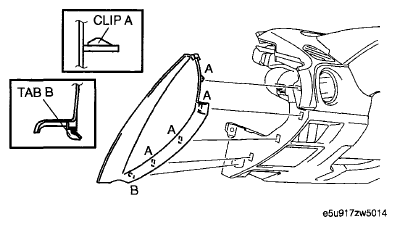

    Fig 1: Side Panel Clips And Tab
    G06149743Courtesy of MAZDA MOTORS CORP.
