Lower Panel Removal/Installation

  1. Pull the lower panel outward and detach clips A and tab B.
  2. Turn the lower panel downward and remove the tabs C.
  3. Remove the lower panel.
  4. Install in the reverse order of removal.

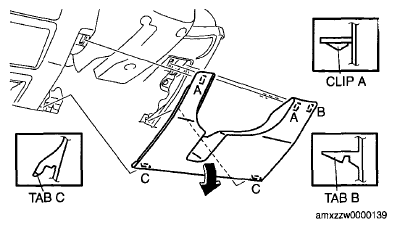

    Fig 1: Turning Lower Panel Downward
    G06149737Courtesy of MAZDA MOTORS CORP.
