Dashboard Disassembly/Assembly

  1. Remove the following parts:
    1. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION )
    2. Hazard warning switch (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION )
    3. Center speaker cover (See CENTER SPEAKER REMOVAL/INSTALLATION )
    4. Center speaker (vehicles with Bose®) (See CENTER SPEAKER REMOVAL/INSTALLATION )
    5. Passenger-side air bag module (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION )
  2. Disassemble in the order indicated in the illustration.

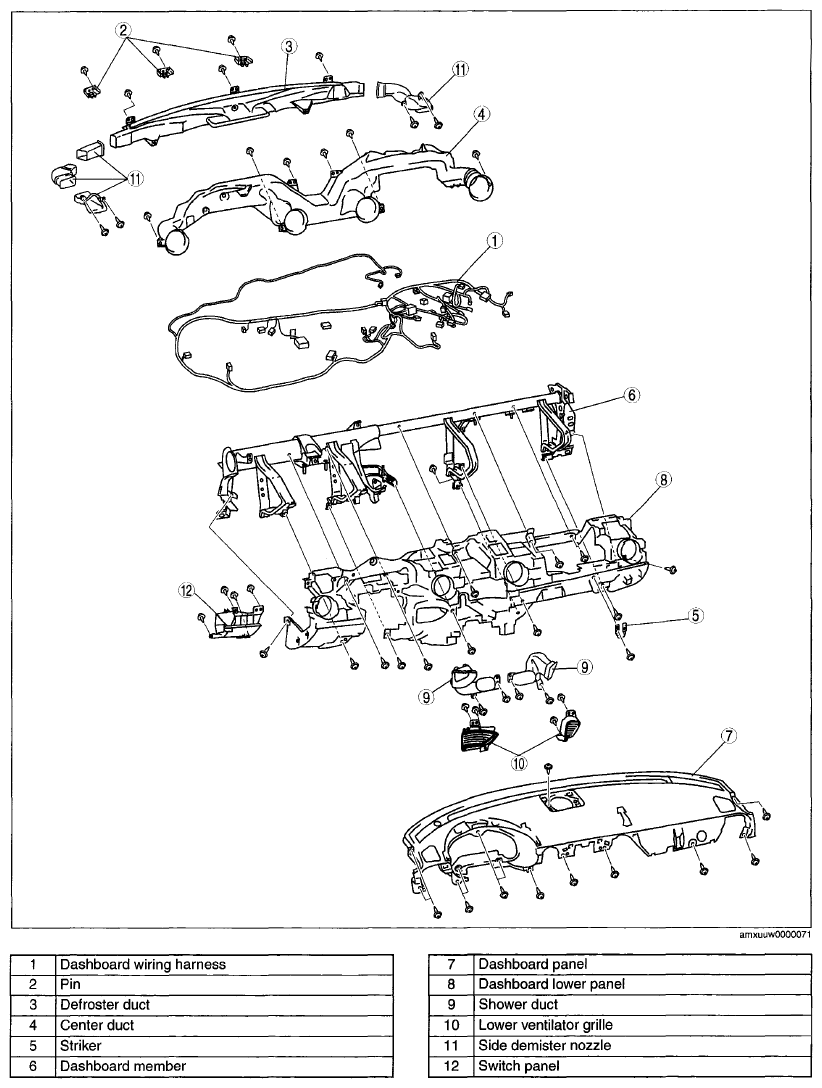

    Fig 1: Dashboard Components
    G06149733Courtesy of MAZDA MOTORS CORP.
  3. Assemble in the reverse order of disassembly.
